Coverall - Two-Part Ducts for Temporary Protection of Cables and Wires.

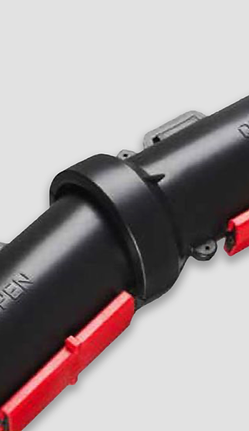

Do you have cables or tubes that are already connected and in use but still in need of protection? In that case, Dutchclamp has a suitable solution: the Electroplast Coverall two-part cable duct.
By means of four hinges on one side and three slide connectors on the other, the two parts are tightly sandproof sealed. The ducts are connected to each other by spigot and socket joints that are integrated into the product. The lengths can be opened easily for inspection or other activities. Space has been created in the joint to accommodate expansion and contraction.
The connections are suitable for making an angle up to 15° per meter in all directions. Furthermore, the ducts can be locked against vandalism using special screws or a steel band.
Coverall two-part cable ducts are available in four sizes:
Outer Diameter:
60 mm
110 mm
160 mm
217 mm
Inner Diameter:
48 mm
98 mm
142 mm
198 mm
Each cable duct is 1,000 mm long.
For branch connections, two-part tees are available, creating a joint that is always closed.
Benefits:
-
Lightweight and strong
-
Reusable
-
Available in four sizes
-
Lockable
-
Can be (dis)assembled without tools
-
UV resistant
-
15° orientation correction per linear meter
-
Tees for any size available as standard
